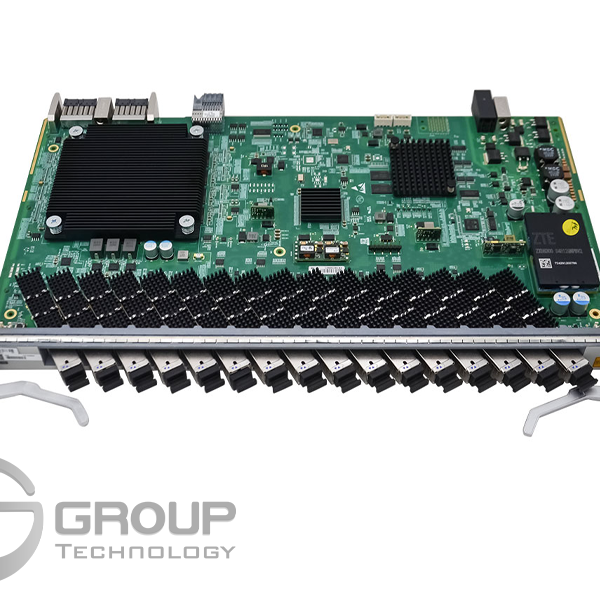

- Brand: ZTE
- Item: GFXH
- Ports: 16
- Type:
- N1 Module: Single-phase bidirectional optical module N1
- N2a Module: Single-phase bidirectional optical module N2a
- Operating Wavelength:
- Tx: 1577 nm
- Rx: 1270 nm
- Encapsulation Type: SFP+
- Port Speed:
- Tx: 10 Gbit/s
- Rx: 2.488 Gbit/s
- Minimum Output Power:
- N1 Module: 2 dBm
- N2a Module: 4 dBm
- Maximum Output Power:
- N1 Module: 6 dBm
- N2a Module: 8 dBm
- Maximum Receiver Sensitivity:
- N1 Module: -27.5 dBm
- N2a Module: -29.50 dBm
- Optical Connector Type: SC/UPC
- Optical Fiber Type: Single-mode
- Signal Range: 20.00 km
- Optical Power Saturation:
- N1 Module: -7 dBm
- N2a Module: -9 dBm
- Extension Ratio: 8.2 dB
- Weight: 1.68 kg
- Dimensions (W x D x H): 393.1 mm (H) × 23.9 mm (W) × 214 mm (D)
