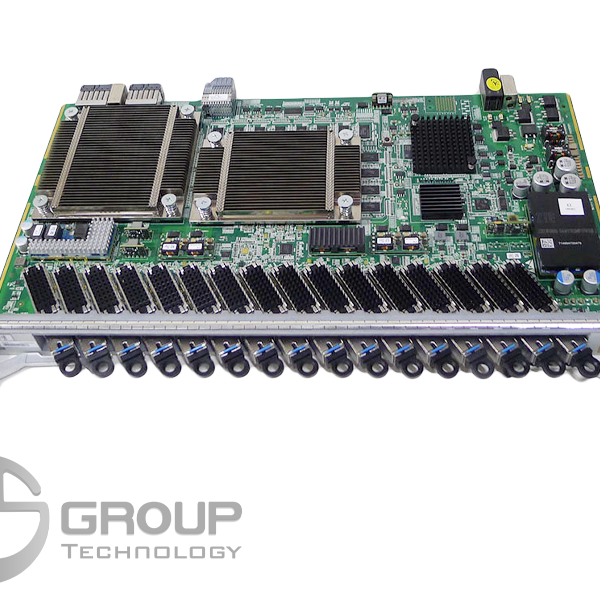

ZTE GFCH ZXA10 C600/C650/C680 16-port XGS-PON and GPON combined OLT interface board with the N1/B+/N2a/C+ module:
- Compatibility: Compatible with ZTE ZXA10 C600/C650/C680 GPON OLT
- Supported Interfaces: 16 XGS-PON and GPON SFP+ hybrid interfaces
- Maximum Optical Splitting (GPON): 1:128
- Maximum Optical Splitting (XG-PON): 1:128
- Optical Power Monitoring: Supported
- ALS (Automatic Laser Shutdown) Function: Supported
- Hot Swapping Support: Supported
| Feature | Specification |
|---|---|
| Port Number | 16 |
| Type | XGS-PON N1 GPON B+ XGS-PON N2a GPON C+ |
| Operating Wavelength | Tx: 1577 nm, Rx: 1270 nm (XGS-PON N1) Tx: 1490 nm, Rx: 1310 nm (GPON B+) Tx: 1577 nm, Rx: 1270 nm (XGS-PON N2a) Tx: 1490 nm, Rx: 1310 nm (GPON C+) |
| Package Type | SFP+ |
| Throughput | Tx: 9.953 Gbit/s (XGS-PON) Tx: 2.488 Gbit/s (GPON) Rx: 2.488 Gbit/s (XGS-PON) Rx: 1.244 Gbit/s (GPON) |
| Minimum Output Optical Power | XGS-PON N1: 2 dBm GPON B+: 1.5 dBm XGS-PON N2a: 4 dBm GPON C+: 3.0 dBm |
| Maximum Output Optical Power | XGS-PON N1: 6 dBm GPON B+: 5.0 dBm XGS-PON N2a: 8 dBm GPON C+: 7.0 dBm |
| Maximum Receiver Sensitivity | XGS-PON N1: -27.5 dBm GPON B+: -28.0 dBm XGS-PON N2a: -29.5 dBm GPON C+: -32.0 dBm |
| Optical Connector Type | SC/UPC |
| Optical Fiber Type | Single-mode |
| Transmission Distance | 20 km |
| Optical Power Saturation | -7 dBm (XGS-PON N1) -8.0 dBm (GPON B+) -9 dBm (XGS-PON N2a) -12.0 dBm (GPON C+) |
| Extinction Ratio | 8.2 dB |
| Dimensions | 393.1 mm (H) × 23.9 mm (W) × 214 mm (D) |
| Weight | 1.72 kg |
