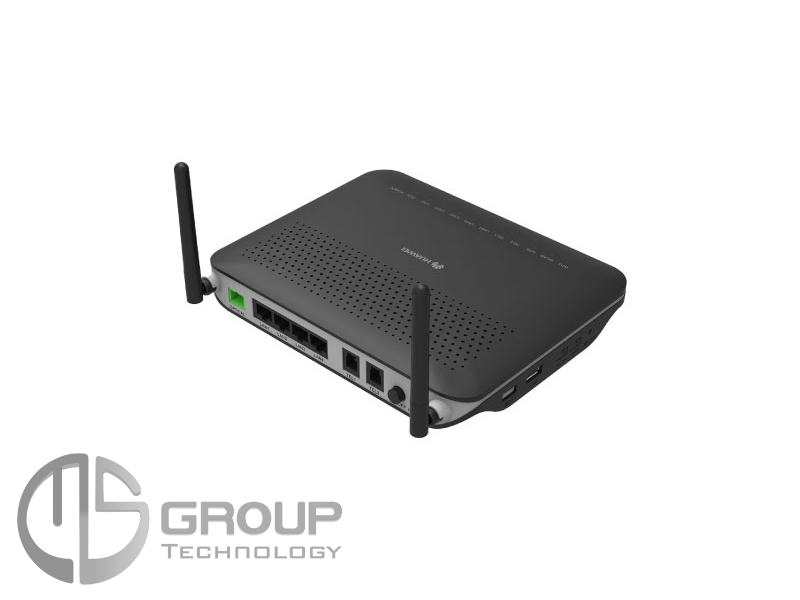

Huawei EchoLife HG8245H is an advanced intelligent routing-type Optical Network Terminal (ONT) from Huawei’s FTTH product line. It uses GPON technology to provide ultra-broadband access, and features 4 GE ports, 2 POTS ports, 1 USB port, and one 2.4 GHz Wi-Fi port. The device offers smart Wi-Fi coverage, advanced interconnection capabilities such as SIP/H.248 auto-negotiation and “any port any service”, as well as smart O&M functions including IPTV video quality diagnostics and rogue ONT detection and isolation. Compared to the older HG8245 model, the HG8245H introduces Gigabit Ethernet ports instead of Fast Ethernet, making it better suited for the demands of modern optical network speeds.
| Category | Specification |
|---|---|
| Model | Huawei EchoLife HG8245H |
| Device Type | GPON ONT, intelligent routing type |
| GPON Interface | 1× SC/UPC, Class B+ |
| Receiver Sensitivity | -27 dBm |
| Downstream Speed | 2.488 Gbps |
| Upstream Speed | 1.244 Gbps |
| Wavelengths | US: 1310 nm / DS: 1490 nm |
| LAN Ports | 4× GE (10/100/1000 Mbps), RJ-45 |
| Phone Ports | 2× POTS (RJ-11), max. REN: 4 |
| USB Port | 1× USB |
| Wi-Fi Standard | IEEE 802.11 b/g/n (2.4 GHz) |
| VoIP Codecs | G.711A/μ, G.729a/b, G.722 |
| Fax Support | T.30 / T.38 / G.711 |
| VoIP Protocols | SIP, H.248 |
| Multicast | IGMP V2/V3 snooping / proxy |
| VLAN | 1:1, N:1, QinQ, transparent |
| IPv4/IPv6 | Dual stack support |
| Static Power Consumption | 5 W |
| Maximum Power Consumption | 15.5 W |
| Power Adapter Input | 100–240 V AC, 50/60 Hz |
| System Power Supply | 11–14 V DC, 2 A |
| Dimensions (W×D×H) | 176 × 138.5 × 28 mm |
| Weight | ~500 g |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% – 95% RH (non-condensing) |
| LED Indicators | POWER / PON / LOS / LAN / TEL / USB / WLAN / WPS |
| Management | Local Web UI; TR-069 and OMCI remote management |
| Security | SN, password, or SN+password authentication; bidirectional FEC |
