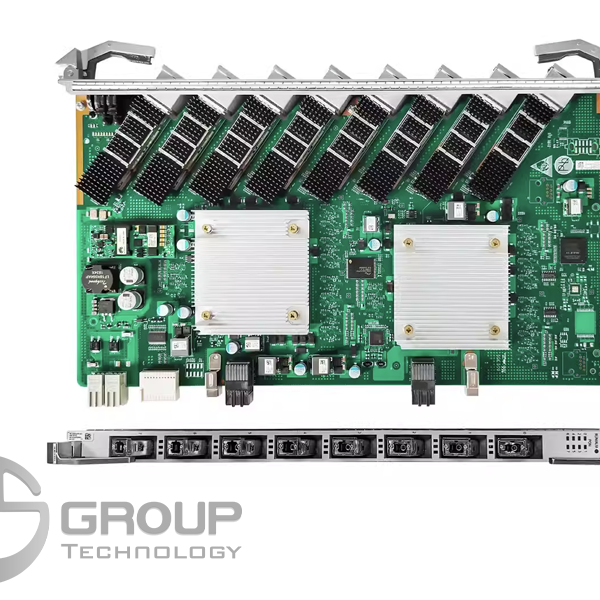

Huawei 8-port 10G EPON OLT Interface Card with 10G EPON PRX30 XFP optical module, which can be used in Huawei MA5600T series OLT devices: MA5608T, MA5683T, MA5680T.
Supports a split ratio of 1:256.
Transmission Rate: 10.3125 Gbit/s, 1.25 Gbit/s.
Reception Rate: 1.25 Gbit/s.
Interface Type: SC/PC.
The 10G-EPON optical module has a maximum optical transmission power of -9.38 dBm.
XEBD allows maximum access for 8*256 10G EPON subscribers.
H802XEBD Datasheet
| Item | H802XEBD |
|---|---|
| Service ports | 8-port 10G EPON |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | Tx: 1490nm, 1577nm |
| Rx: 1310nm | |
| Encapsulation Type | XFP |
| Port Rate | Tx: 10.3125Gbit/s, 1.25Gbit/s |
| Rx: 1.25Gbit/s | |
| Minimum Output Optical Power | |
| 10G: | 2 dBm |
| 1G: | 2.5 dBm |
| Maximum Output Optical Power | |
| 10G: | 5 dBm |
| 1G: | 7 dBm |
| Maximum Receiver Sensitivity | -29.78dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | -9.38dBm |
| Extinction Ratio | |
| 10G: | 6 dB |
| 1G: | 9 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 25 W; Maximum: 54 W |
| Maximum Frame Size | |
| 1996 bytes (1G) | |
| 2004 bytes (10G) | |
| Operating temperature | -40°C to +65°C |
