SPECIFICATION | H801EPBA | H802EPBC | H802EPBD | H808EPSD | H802EPFD/H803EPFD |
---|---|---|---|---|---|
Number of Interfaces | 4 | 4 | 8 | 8 | 16 |
Splitting Ratio | 0.086111111 | 0.086111111 | 0.086111111 | 0.086111111 | 0.086111111 |
Optical Module | SFF (SFP not connected) | SFP | SFP | SFP | SFP |
IP Spoofing | × | √ | √ | √ | √ |
MAC Address Spoofing | × | √ | √ | × | √ |
Anti-DOS Attack | √ | √ | √ | √ | √ |
Optical Channel Performance Monitoring | × | √ | √ | √ | √ |
Optical Module Light Control | × | × | × | × | √ |
Temperature Query and High Temperature Alarm | × | √ | √ | √ | √ |
Automatic Shutdown at High Temperature | × | √ | √ | √ | √ |
Maximum Number of Service Flows per Card | 8184 | 8184 | 8184 | 8000 | 16368 |
Maximum Number of Service Flows per LLID | 4096 | 4096 | 4096 | 8000 | 4096 |

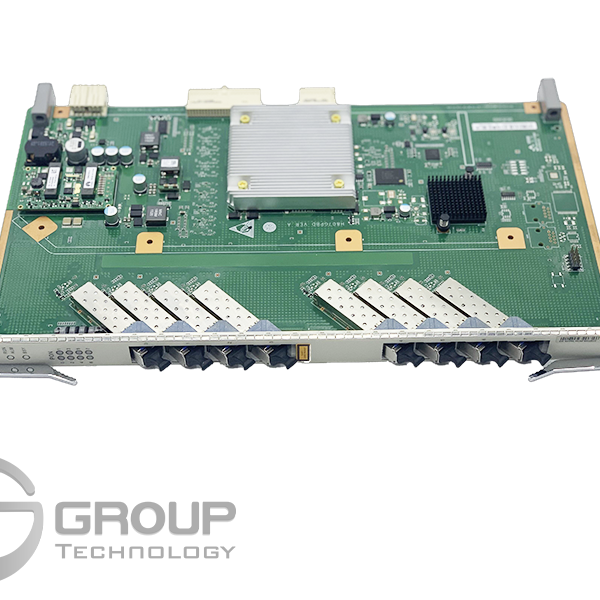

Huawei EPFD
Huawei EPFD service card is a 16-port EPON service card for MA5683T, MA5680T, and MA5608T OLT devices. It works in conjunction with the Optical Network Unit (ONU) to provide EPON access service, New
Available on backorder
Description
Manufacturer |
Huawei |
---|---|
Condition |
New |
